919 fork oil change - yes I searched

OK I searched like crazy and found lots of interesting suspensions discussions but no 'how-to's'.

Fork oil change on the 919. 07 model.

From what I gather it goes like this:

Drop forks, undo top cap - there is a thingy to undo under the top cap then remove the spacer and spring.

Tip out old oil, remove cartridge and pump it like a school-boy to remove oil.

Cartridge back in.

Add oil - 10 weight, spec amount.

Pump fork several times and pump cartridge several times to fill.

Measure oil when the fork is compressed.

Adjust to suit.

Spring back in, spacer back in, tighten up the rod and top cap and screw top cap back in.

What did I miss?

More importantly how come my local suspension man wants $300 to do this if I bring the forks in!

Consquently I'll do it myself.

Cheers for any pointers or directions to the no doubt already posted link.

AllanB is offline
Sponsored Links
Advertisement

post #2 of 26 Old 09-26-2010, 03:08 AM
Fool in the Rain

HondaJim's Avatar

Join Date: Feb 2006
Location: Louisville, Kentucky
Posts: 10,284
Rep Power: 1

Garage

Awards Showcase
Donation Wrist Twisters Event Attendance Extraordinary Ride Wrist Twisters Event Attendance
Total Awards: 4

It's a lot easier if you loosen the top caps before you loosen the triple clamps. That way after removing the forks it's easier to get the top caps off.
If you're not disassembling them, after you pump them "like a school boy" to get the old oil out, leave them upside down for awhile setting in a bowl or something that can catch the oil. Some more will drain out.
If you get too much fork oil in one I use one of those snot suckers for a baby's nose to get some out.

"Towards the end of the vid, it looks like she may have had a bafflectomy." - MarylandMike
HondaJim is offline
post #3 of 26 Old 09-26-2010, 03:46 AM
Cornicen

Join Date: Nov 2009
Location: Manila, Philippines
Posts: 515
Blog Entries: 1
Rep Power: 1

Quote:
Originally Posted by AllanB View Post
OK I searched like crazy and found lots of interesting suspensions discussions but no 'how-to's'.

Fork oil change on the 919. 07 model.

From what I gather it goes like this:

Drop forks, undo top cap - there is a thingy to undo under the top cap then remove the spacer and spring.

Tip out old oil, remove cartridge and pump it like a school-boy to remove oil.

Cartridge back in.

Add oil - 10 weight, spec amount.

Pump fork several times and pump cartridge several times to fill.

Measure oil when the fork is compressed.

Adjust to suit.

Spring back in, spacer back in, tighten up the rod and top cap and screw top cap back in.

What did I miss?

More importantly how come my local suspension man wants $300 to do this if I bring the forks in!

Consquently I'll do it myself.

Cheers for any pointers or directions to the no doubt already posted link.
Good stuff, I'm about to do this the next free weekend I have. Not sure I understand how to measure the fork oil though? measure from the top of the leg?

honda ng gingsa is offline
post #4 of 26 Old 09-26-2010, 03:54 AM
Discen

Join Date: Jan 2007
Location: australia
Posts: 283
Rep Power: 1

how old are the forks, maybe while they are out you could put in new seals and clean that area, its a shame to do all that work, to have a bit of dirt damage the seals.


measure from the top of the leg, with the forks compressed, I like to over fill a bit then use a syringe with a pre-measured extension tube to suck out the excess
WxN likes this.

davehirt is offline
post #5 of 26 Old 09-26-2010, 04:02 AM
`

zaq123's Avatar

Join Date: Apr 2009
Location: here n' there
Posts: 3,842
Rep Power: 1


Awards Showcase
Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance
Total Awards: 17

Loosen the top cap, drop your forks. Loosen top cap completely and drop your forks upside down. Drain the oil. Remove top cap, preload adjuster and spacer with spring. Remove rebound needle (carefully) from the rebound tube.

Push fork tube (chrome part) and rebound rod all the way into fork leg (bottom part) Refill with fluid (should be less than 16 oz per fork). Make sure it's a cartridge fork fluid not just any fork fluid (like for dirt bikes, harleys etc).
Push rebound rod all the way down. Take fork tube (chrome part) and extend it up about. Cover the top with your hand and push it down (do this a few times). Leave it in down position. Pump the rebound rod a few times until clear ol will come out of it (bo air babbles). Screw the rebound needle into the rebound rod and leave it for 5-10min. After that check the oil level, start with 125mm. If needed, siphon some with a meat injector etc. Once you get 125mm, bolt everything back up.

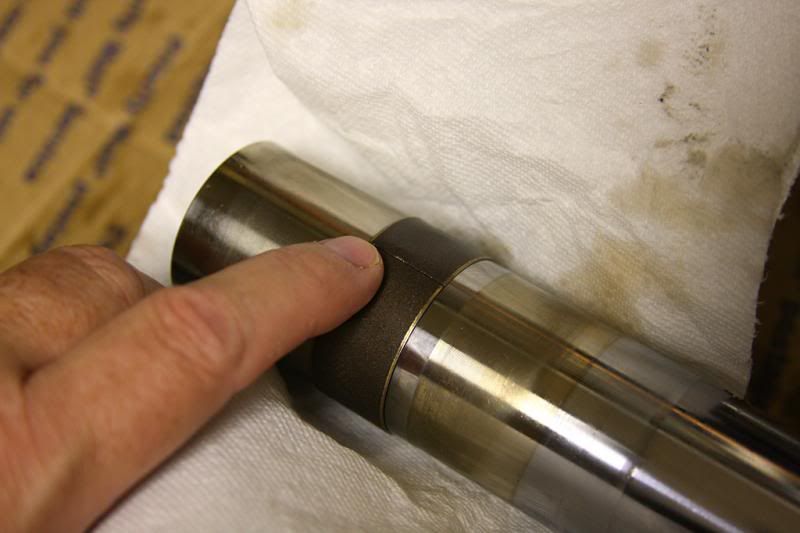

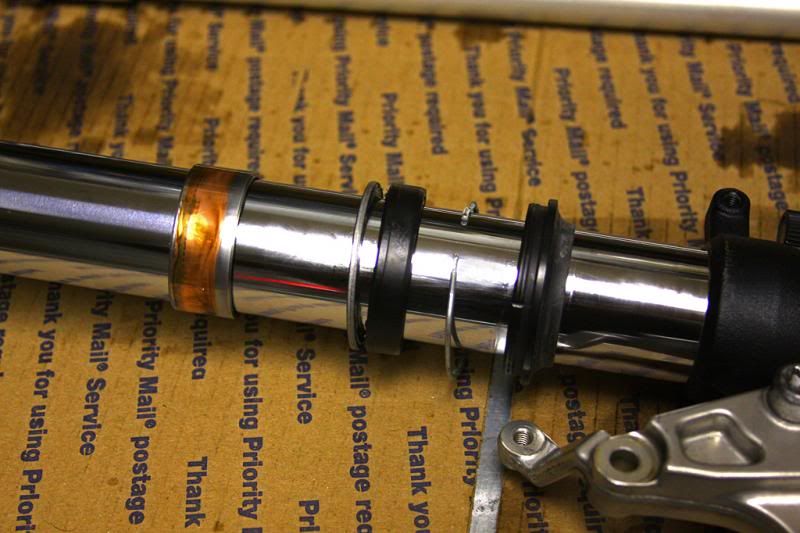

here is your fork, obviously you don't need to take it apart that much


zaq123 is offline
post #6 of 26 Old 09-26-2010, 09:22 AM
McTavish

mcromo44's Avatar

Join Date: Oct 2007
Location: Calgary
Posts: 5,538
Rep Power: 1

Quote:
Originally Posted by zaq123 View Post
Loosen the top cap, drop your forks. Loosen top cap completely and drop your forks upside down. Drain the oil. Remove top cap, preload adjuster and spacer with spring. Remove rebound needle (carefully) from the rebound tube.

Push fork tube (chrome part) and rebound rod all the way into fork leg (bottom part) Refill with fluid (should be less than 16 oz per fork). Make sure it's a cartridge fork fluid not just any fork fluid (like for dirt bikes, harleys etc).
Push rebound rod all the way down. Take fork tube (chrome part) and extend it up about. Cover the top with your hand and push it down (do this a few times). Leave it in down position. Pump the rebound rod a few times until clear ol will come out of it (bo air babbles). Screw the rebound needle into the rebound rod and leave it for 5-10min. After that check the oil level, start with 125mm. If needed, siphon some with a meat injector etc. Once you get 125mm, bolt everything back up.








here is your fork, obviously you don't need to take it apart that much

See zaq's upper picture, with the hands on the wrenches.
Now go back to and add a step 1 at the very beginning of the work.
A
Very gently nip down your external rebound adjuster to closed, as in full hard, and count the number of turns needed.
B
Then back it out 1/2 a turn.

This is all to make absolutely sure there is no way then needle can get damaged from over tightening during disassembly ( yes, it should not be possible to overtighten during disassembly but why take a chance).

Fast forward to reassembly time.
To the stage that you are about to remount the top cap/adjuster assembly to the cartridge rod.
1
Turn the rebound adjusters in 1/2 turn.
2
Back off the jam nut on the cartridge rod.
3
Very lightly and slowly run down the top cap assembly on to the cartridge rod.
4
As soon as the top cap assembly barely feels like it has hit some kind of internal "stop", do not move it further.
5
Back out the rebound adjuster 1/2 turn.
6
Run up the cartridge rod lock nut until it nips up on the underside of the top cap assembly.
7
Set the cartridge rod lock nut to tight.
8
Turn in your rebound adjuster until it lightly bottoms out.
9
Back out your rebound adjuster to the same number of turns you found at very beginning of work step A above.


All of this is about making sure the rebound needle does not get damaged by bottoming out during disassembly and reassembly, getting repeatability on rebound settings, and making sure the working height of the rebound needle rod is kept correct over multiple dis and re-assemblies over time. You can also do a vernier checks from the top face of the rebound adjuster screw down to the top face of the ride height adjusters. Until you had it apart, what you may not know is that the actual rebound "needle" is at the end of a long skinny rod that registers inside the cartridge rod. The needle and seat are not in the top adjuster cap assembly. Now go back to step 4. What you are actually feeling at this point is the needle at the end of the long skinny rod seating down deep inside the cartridge rod.

mcromo44 is offline
post #7 of 26 Old 09-26-2010, 10:56 AM
Back in the day

Hondad's Avatar

Join Date: Apr 2007
Location: Melbourne, FL
Posts: 270
Rep Power: 1

My service manual on page's 13-1 and 13-23 say's that the Fork Oil Level should be 155mm (6.1 in).
I hope that the manual is right because that is what I set mine to.

Hondad is offline
post #8 of 26 Old 09-26-2010, 11:03 AM
McTavish

mcromo44's Avatar

Join Date: Oct 2007
Location: Calgary
Posts: 5,538
Rep Power: 1

Quote:
Originally Posted by Hondad View Post
My service manual on page's 13-1 and 13-23 say's that the Fork Oil Level should be 155mm (6.1 in).
I hope that the manual is right because that is what I set mine to.
That is correct in terms of the manual.
Race Tech calls up 140 for a modded front end.
I went to 125, purely looking for some more air springing at one heavy brake point on the track. It made a bit of difference so I stayed at 125. Didn't want to change the spring rate, as the spring rate is just right everywhere else.

mcromo44 is offline
post #9 of 26 Old 09-26-2010, 11:13 AM
no max no more

Join Date: Mar 2009
Location: boston
Posts: 1,656
Rep Power: 1

my buddy drilled tapped drain plugs in both forks then fills using a small pump.....they should all be that easy

dont need a bike to ride the fast lane
secondchance is offline
post #10 of 26 Old 09-26-2010, 01:05 PM
Milites Gregarius

veEnom's Avatar

Join Date: Jun 2010
Location: New Zealand
Posts: 173
Rep Power: 1

[QUOTE=HondaJim;414875]It's a lot easier if you loosen the top caps before you loosen the triple clamps. QUOTE]

Amen to that. I learnt that the hard way. bt hey now others get to benefit from my stupidity.

Ohh use a vernier to measure the oil height.

veEnom is offline
post #11 of 26 Old 09-26-2010, 04:47 PM
JJRZ350

JEFFREY HERRELL's Avatar

Join Date: Jan 2008
Location: OCEANSIDE, CA. 92057
Posts: 174
Rep Power: 1


Awards Showcase
Veteran
Total Awards: 1

Question: what's the deal on a required spring compressor, my local suspension guy say's you need this to replace the springs.

Also how about the details related to drilling and tapping the lwr legs for quick oil replacement by draining a certain volume of fliud from each leg then replacing that particular amount? I know this is far from the desired method but if you wanted to experiment with different oil wts and volumes in should work with a fair level of consistency... Opions welcome

YAAWZZU!!!

JEFFREY HERRELL is offline
post #12 of 26 Old 09-26-2010, 05:28 PM
(Quintus) Pilus Prior

The Shadow's Avatar

Join Date: Jan 2009
Location: Boulder, Colorado
Posts: 2,762
Rep Power: 1


Awards Showcase
Veteran Extraordinary Ride Wrist Twisters Event Attendance
Total Awards: 3

I'm really not sure how a spring compressor would function in this case...it would have to attach internal to the spring coils, be thin enough to not interfere with the inner workings and also be temporal/spacial multi-phase compliant to pass through the top cap for removal after you put it all back together.

I think a medical type syringe (without a needle) would work very well for adding & removing fork oil as necessary since it would have volume measure markings on the side.





.

Well, fire the engines! Spur this iron space-pony on!

"The Shadow"
The Shadow is offline
post #13 of 26 Old 09-26-2010, 05:35 PM
McTavish

mcromo44's Avatar

Join Date: Oct 2007
Location: Calgary
Posts: 5,538
Rep Power: 1

Quote:
Originally Posted by JEFFREY HERRELL View Post
Question: what's the deal on a required spring compressor, my local suspension guy say's you need this to replace the springs.

Also how about the details related to drilling and tapping the lwr legs for quick oil replacement by draining a certain volume of fliud from each leg then replacing that particular amount? I know this is far from the desired method but if you wanted to experiment with different oil wts and volumes in should work with a fair level of consistency... Opions welcome
You can get away without it.
The 919 forks are such that you can get the top cap threads started back in by merely pushing down on the cap with your hand and turning it. I use tall socket and and wear a grip glove to do it.

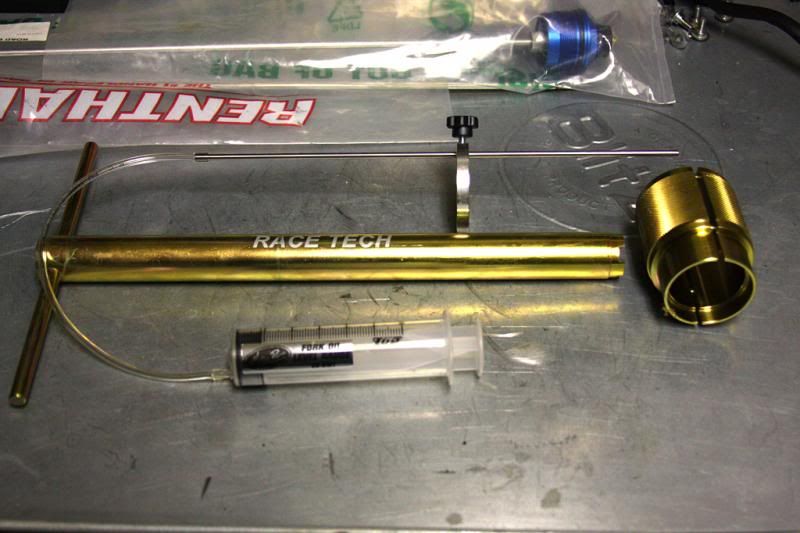

What is nice to have is the steel support plate that slides over the cartridge rod under the jam nut at the top. It makes loosening and re-tightening the top cap assembly to the cartridge rod much easier.

mcromo44 is offline
post #14 of 26 Old 09-26-2010, 06:00 PM
`

zaq123's Avatar

Join Date: Apr 2009
Location: here n' there
Posts: 3,842
Rep Power: 1


Awards Showcase
Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance
Total Awards: 17

you don't need spring compressor for 919 forks, period. USD forks, different story

zaq123 is offline
post #15 of 26 Old 09-26-2010, 06:04 PM
`

zaq123's Avatar

Join Date: Apr 2009
Location: here n' there
Posts: 3,842
Rep Power: 1


Awards Showcase
Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance
Total Awards: 17

see 1st pic (those are not mine btw). There is a washer under the bottom arrow, remove that slotted washer and the whole assembly will be unloaded.

zaq123 is offline
post #16 of 26 Old 09-26-2010, 07:15 PM Thread Starter
Pilus Posterior

AllanB's Avatar

Join Date: Sep 2008
Location: New Zealand
Posts: 2,101
Blog Entries: 1
Rep Power: 1

Excellent - good info thanks.

AllanB is offline
post #17 of 26 Old 09-27-2010, 12:02 AM
Cornicen

Join Date: Nov 2009
Location: Manila, Philippines
Posts: 515
Blog Entries: 1
Rep Power: 1

Good stuff guys, thanks

honda ng gingsa is offline
post #18 of 26 Old 09-27-2010, 01:39 PM
Tirone

Kingston's Avatar

Join Date: Oct 2008
Location: Kingston
Posts: 39
Rep Power: 1

Hoe often should you chande fork oil?

Kingston is offline
post #19 of 26 Old 09-27-2010, 01:54 PM
`

zaq123's Avatar

Join Date: Apr 2009
Location: here n' there
Posts: 3,842
Rep Power: 1


Awards Showcase
Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance
Total Awards: 17

Quote:
Originally Posted by Kingston View Post
Hoe often should you chande fork oil?
there is no set amount in the manual.

For the track bike - 50 hours

zaq123 is offline
post #20 of 26 Old 09-27-2010, 02:20 PM Thread Starter
Pilus Posterior

AllanB's Avatar

Join Date: Sep 2008
Location: New Zealand
Posts: 2,101
Blog Entries: 1
Rep Power: 1

Quote:
Originally Posted by Kingston View Post
How often should you change fork oil?
The old rule used to be every two years for 'average' street milage.

Consequently I'm a year overdue

While at it change the brake fluid too.

And the engine coolant.

Three things on my list "to-do" this weekend.

AllanB is offline
post #21 of 26 Old 09-28-2010, 05:52 AM
STR-III

cmurphy84's Avatar

Join Date: Aug 2008
Location: Western KY
Posts: 4,989
Rep Power: 1


Awards Showcase
Donation Donation
Total Awards: 2

Quote:
Originally Posted by AllanB View Post
The old rule used to be every two years for 'average' street milage.

Consequently I'm a year overdue

While at it change the brake fluid too.

And the engine coolant.

Three things on my list "to-do" this weekend.
I have had my 919 for 2.5 years and 15,000 miles. The bike has 30,000 on it. I really doubt the previous owner replaced the fluid. Maybe I'll add this to my Winter Projects list.

Press Any Key To Continue.
cmurphy84 is offline
post #22 of 26 Old 09-28-2010, 05:29 PM
rmb
Let's go!

rmb's Avatar

Join Date: Aug 2009
Location: Sussex Couty NJ
Posts: 7,647
Rep Power: 1


Awards Showcase
Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance
Total Awards: 9

Quote:
Originally Posted by cmurphy84 View Post
I have had my 919 for 2.5 years and 15,000 miles. The bike has 30,000 on it. I really doubt the previous owner replaced the fluid. Maybe I'll add this to my Winter Projects list.
+1, fluid and springs, maybe valves if $$ allows...

rmb is offline
post #23 of 26 Old 11-03-2013, 01:09 PM
No 10

insideleft's Avatar

Join Date: Nov 2011
Location: Purgetory
Posts: 34
Rep Power: 1

what kinda tool do you fellas use to remove and replace the oil seal ?

I had my 03 suspension rebuilt 14k ago and then decided to buy - got a virtually new 07.

Last weekend, changed the suspension from the 03 to the 07 - now find one of the 03 forks has a seal leak, so I'll change them. I did this because a friend advised me that the 03, rebuilt, suspension was now better quality than the stock 07 (gold seals, shorter springs to lower the bike to a better height for me, rear gas bottle engineered to allow refilling, ohlins rear spring).

Wondering if I need to buy a special tool to replace the fork seals - a friend suggested some pvc would do - any suggestions ?

I.L.

No10
insideleft is offline
post #24 of 26 Old 11-03-2013, 01:38 PM
Gran Tirono

Asraiil's Avatar

Join Date: Feb 2011
Location: Stafford, Va
Posts: 630
Rep Power: 1


Awards Showcase
Veteran
Total Awards: 1

When I replaced the seals on my monster last week a blowtorch and screwdriver was all that was needed to pull out the old seal, being very careful not to scratch the inside of the fork tube. Seating the new seal required more blowtorch and a seal driver. I've heard of people using the PVC pipe option to good effect, but I had one from replacing the headstock bearings. I watched a few videos on standard forks (like on the 9er) since I nearly had to do the same on her before I sold her, and the process for the seal looked to be about the same. The process for separating the forks was way different, but that's a different story!

Asraiil is offline
post #25 of 26 Old 11-03-2013, 10:53 PM
Robert

HRC27's Avatar

Join Date: Aug 2013
Location: NE Florida
Posts: 1,126
Rep Power: 1

Garage
Removal: After removing the oil you remove the dust seal with pic or carefully with screwdriver. That will expose the seal snap ring inside the fork. Use a pick or screwdriver to remove the clip and move down the slider out of the way. Grab each leg with one hand and pull apart till they stop. Bring them back together a little then snap them back out quickly 3-4 times unit the forks separate. A little heat helps first.

Installation: Place a zip-lock bag on end of tube so you don't nick new seals. Order is: dust seal-snap ring-seal (remove bag now)-washer-outer bushing. Spread inner bushing open slightly with screwdriver and install on slider.

Place slider with outer bushing back in to outer tube, using washer, drive in outer bushing , then seal. Install snap ring and push in dust seal by hand. That's it.

Pics are of USD forks but same applies to conventional forks. I would get a 43mm seal driver, cartridge holding tool (although you don't have to remove cartridge to replace seals, it aids in cleaning) and oil level measuring tool.





Tools: 43mm seal driver $35 on eBay, cartridge tool probably $65 and measuring tool say $20-$25.


Robert

2002 Honda 919
2003 Honda CRF450R
HRC27 is offline
post #26 of 26 Old 11-03-2013, 11:48 PM
Robert

HRC27's Avatar

Join Date: Aug 2013
Location: NE Florida
Posts: 1,126
Rep Power: 1

Garage
A good source for what type & size forks you have, oil weight and height, etc, is racetech.com .

Click on Product Search on left of page then change option to Street on next page then bike info. I suggest buying your tools on eBay though to save money.

Note: Instructions based on USD forks, adjust accordingly for conventional forks. You probably can just omit the sandwhich bag and slide everything on/off the top of slider for example. If there is a height level groove around the slider, just put a piece of office tape over it.

Everything else should apply.

Robert

2002 Honda 919
2003 Honda CRF450R
HRC27 is offline
Reply

Quick Reply
Message:
Options

Register Now



In order to be able to post messages on the Wrist Twisters forums, you must first register.
Please enter your desired user name, your email address and other required details in the form below.

User Name:
Password
Please enter a password for your user account. Note that passwords are case-sensitive.

Password:


Confirm Password:
Email Address
Please enter a valid email address for yourself.

Email Address:
OR

Log-in










Thread Tools
Show Printable Version Show Printable Version
Email this Page Email this Page
Display Modes
Linear Mode Linear Mode



Posting Rules
You may post new threads
You may post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off


For the best viewing experience please update your browser to Google Chrome
