Koso Speedo Knockoff

So I have purchased a new Koso knockoff speedometer. Seen here: Backlight Mini Motor Bike LCD Digital Speedometer Odometer for 1 2 4 Cylinder | eBay

I will do a full write up on the install, function, and durability after a month or so of riding with it. You do have to message them to inform them of how many cylinders your bike has. You also have to tell them if your RPM signal is positive or negative. I haven't gotten to the book yet, but does anyone know which (positive or negative) the 919's RPM signal is?
Attached Images
File Type: jpg image.jpg (34.3 KB, 26 views)
Wolf is offline
Sponsored Links
Advertisement

post #2 of 23 Old 03-02-2014, 08:15 PM
Centurion

Join Date: Apr 2013
Location: New Zealand
Posts: 1,310
Rep Power: 1

Just looked at the ad and it says not for fuel injected motorcycles....

NZspokes is offline
post #3 of 23 Old 03-02-2014, 08:25 PM
Milites Gregarius

Madmax919's Avatar

Join Date: Aug 2013
Location: Selma
Posts: 163
Rep Power: 1

Quote:
Originally Posted by NZspokes View Post
Just looked at the ad and it says not for fuel injected motorcycles....
Thats weird. What's the difference and I wonder why it has the check engine light then?

Madmax919 is offline

post #4 of 23 Old 03-02-2014, 09:28 PM
Community Moderator

g00gl3it's Avatar

Join Date: Jun 2009
Location: Idaho
Posts: 11,622
Rep Power: 1


Awards Showcase
Wrist Twisters Event Attendance Wrist Twisters Event Attendance Wrist Twisters Event Attendance
Total Awards: 3

I thought someone already tried these and never got them to work.

2009 Aprilia Tuono - Ginger
2001 XR650R BRP (Big Red Pig)
2006 Honda 599 - Ex wrecked it :-D
2007 Honda CB900F (sold)
2006 Honda VTX 1300C (sold)
YouTube Channel
g00gl3it is offline
post #5 of 23 Old 03-02-2014, 11:37 PM
Centurion

Join Date: Apr 2013
Location: New Zealand
Posts: 1,310
Rep Power: 1

Quote:
Originally Posted by g00gl3it View Post
I thought someone already tried these and never got them to work.
I think they would only work on single cyl or something. Wasnt that long ago.

NZspokes is offline
post #6 of 23 Old 03-03-2014, 02:36 AM
Ian

HeliMech's Avatar

Join Date: Jul 2009
Location: Nova Scotia, Canada
Posts: 3,313
Rep Power: 1

It was Ditch ..... the one he had picked up was made for 2-stroke engines only.

HeliMech is offline
post #7 of 23 Old 03-03-2014, 01:59 PM
(Quintus) Pilus Prior

beefsalad's Avatar

Join Date: Dec 2007
Location: San Antonio, TX
Posts: 2,777
Blog Entries: 51
Rep Power: 1


Awards Showcase
Donation
Total Awards: 1

Try +, if it doesn't work flip to -?

Curious how would could tell. I'll hit up the Honda master tech I know to see if he has an answer.... though outside of working hours he's iffy on tech questions.

if you love your motorcycle, set it free.. if it comes back and hits you.. you highsided
beefsalad is offline
post #8 of 23 Old 03-19-2014, 06:32 AM Thread Starter
Road Pilot

Wolf's Avatar

Join Date: Mar 2013
Location: Dallas
Posts: 1,366
Rep Power: 1

Garage
I am in need of some wiring skimatics to match to the gauges here. Clorox said someone emailed him one for the Koso gauge he bought? Anything helps, thanks!
Wolf is offline
post #9 of 23 Old 03-19-2014, 07:08 AM
Imaginifer

bpolunin's Avatar

Join Date: Sep 2012
Location: Duluth, GA
Posts: 434
Rep Power: 1

I was the one that tried the Koso replica. It did not work. I wired everything correctly but it would not function. I was told after the fact that they are made for 1 cyl. engines only.
Here are the thread I posted a while back.
https://www.wristtwisters.com/forums/...ica-32444.html
https://www.wristtwisters.com/forums/...nit-32567.html

Maybe they changed since then, but I have my doubts. I have some wiring schematics in that thread I think...

2007 Yamaha VStar Classic
2005 Suzuki SV650 - traded
2003 Honda 919 - traded
2008 Aprilia Tuono 1000R - Sold
2008 Aprilia RSV1000R Track Only
2007 Honda CBR600RR - sold
2005 Honda CBR600F4i
bpolunin is offline
post #10 of 23 Old 03-19-2014, 07:56 AM Thread Starter
Road Pilot

Wolf's Avatar

Join Date: Mar 2013
Location: Dallas
Posts: 1,366
Rep Power: 1

Garage
Thanks, they specifically asked how many cylinders my engine was before they shipped.
Wolf is offline
post #11 of 23 Old 03-19-2014, 08:08 AM
Imaginifer

bpolunin's Avatar

Join Date: Sep 2012
Location: Duluth, GA
Posts: 434
Rep Power: 1

I really hope you get it working. The unit looks awesome. Only if it could function properly. And just an FYI, the Koso mount bracket works perfect with this unit.

2007 Yamaha VStar Classic
2005 Suzuki SV650 - traded
2003 Honda 919 - traded
2008 Aprilia Tuono 1000R - Sold
2008 Aprilia RSV1000R Track Only
2007 Honda CBR600RR - sold
2005 Honda CBR600F4i
bpolunin is offline
post #12 of 23 Old 03-19-2014, 05:12 PM
Tesserarius

Cloroxbleach4's Avatar

Join Date: Dec 2012
Location: Tulsa, OK
Posts: 672
Rep Power: 1

Cloroxbleach4 is offline
post #13 of 23 Old 03-21-2014, 01:00 PM Thread Starter
Road Pilot

Wolf's Avatar

Join Date: Mar 2013
Location: Dallas
Posts: 1,366
Rep Power: 1

Garage
Need some help

Quote:
Originally Posted by arctic954 View Post
Well --- apparently there have been quite a few people coming to WristTwisters because this thread keeps getting hits via. Google Search. So --- I keep getting PM's of people asking me for the color code wiring diagram of the Koso RX2-N to OEM harness connections.

USE THIS INFORMATION AT YOUR OWN RISK.....I'm drinking, its late, don't quote me!

To make things clear --- the Koso comes with a multi-pin single connector that plugs into the back of the unit --- on the other end is quite a few wires all color coded with bare ends ready to be soldered in.

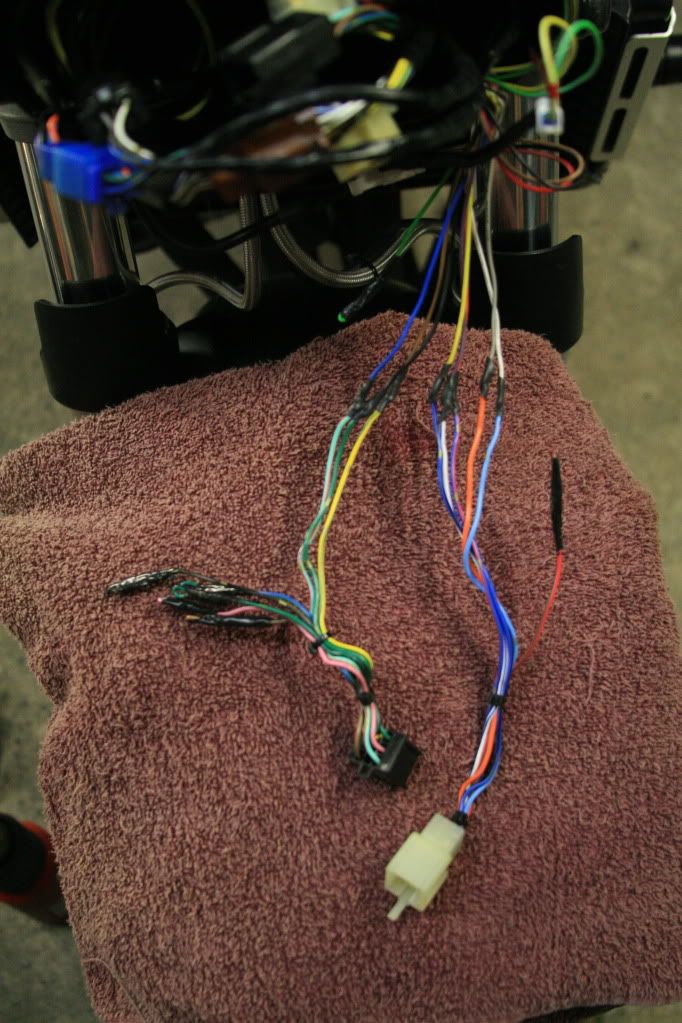

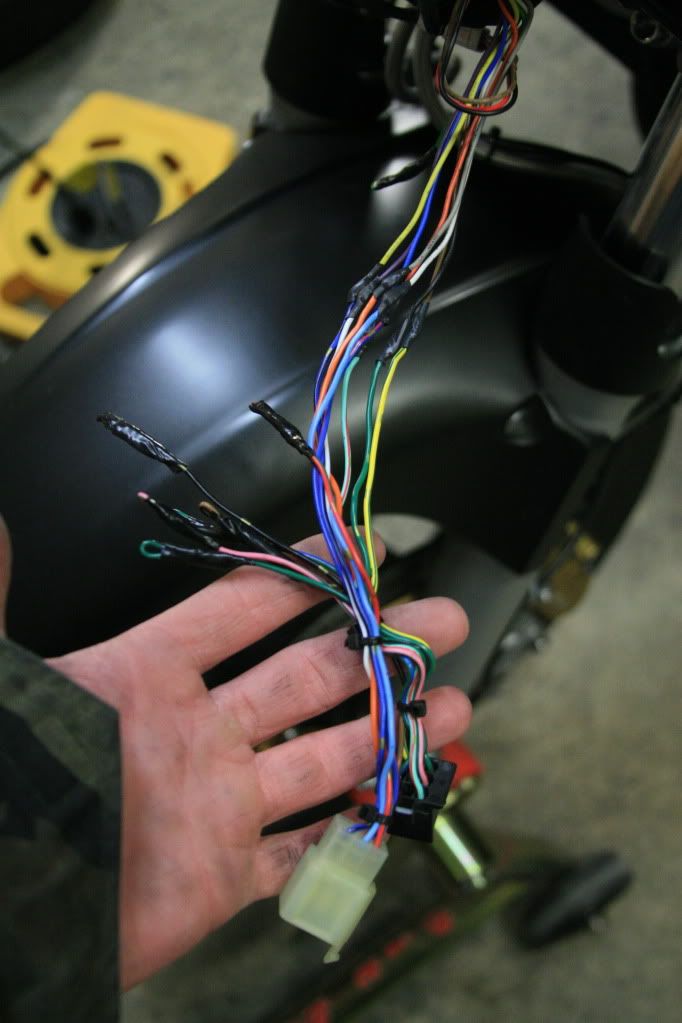

On the other side ---- I've cut the wire harness/connectors off the back of the OEM speedometer and stripped the ends. By soldering these 2 harnesses together..... you basically make a plug 'N play wire harness for the Koso.

Don't even think about attempting this install if you don't know how to solder. The connections simply won't hold up with wire crimps.


Here are the color codes that I used.....

Koso-----------------------------OEM harness

White (right turn signal) --------------Lt Blue
Brown (RPM wire)--------------------- Yellow/Green Stripe
RED (Main Positive Power)------------Connect to the battery + terminal
Black (ground) ------------------------ Green (this wire goes to Rob's LED fuel harness)
Brown (keyed Ignition, 12v +)-------- Keyed Ignition Signal (on your own)
Lt Grey (left turn signal) ------------- Orange
Orange (oil light) --------------------- Blue/Red Stripe
Purple or Violet (FI light) ------------ White/Blue Stripe
Yellow (high beam indicator)---------Dark Blue/Black Stripe
Blue (neutral light)--------------------Light Green/Red Stripe
Green (fuel gauge indicator)----------No Connection - See below

In addition to these connections.... you have the KOSO sensors.... active speed sensor, and temperater sensors. Please see the Koso manual.


NOTES:

There are quite a few wires that are left unused on the Honda Harness side of the wiring. This is mainly due to the Koso using a master ground....and the Honda Speedo using separate grounds to the individual internal components.

The Koso fuel gauge WILL NOT WORK WITH THE HONDA 919. End of story. The Honda speedometer has electronics in it to decode the information for the thermister sensor in the gas tank. The Koso does not know what to do with this information.......Please see Rob Tharalson's fuel reserve LED thread - he created a stand alone LED solution.

The turn signals WILL NOT blink on the face of the Koso gauge....however your blinkers will still work as normal. Again.....electronics that were inside the Honda speedometer made the bulbs blink.... To be honest.... not that big of a deal....



So on the keyed ignition signal what should I tie it too? And what would be the best method for running main power back to the battery terminal?
Wolf is offline
post #14 of 23 Old 03-21-2014, 01:19 PM Thread Starter
Road Pilot

Wolf's Avatar

Join Date: Mar 2013
Location: Dallas
Posts: 1,366
Rep Power: 1

Garage
In addition the 919 speedometer has R/G and P/G going to it? Do you splice these?
Wolf is offline
post #15 of 23 Old 03-22-2014, 05:28 AM Thread Starter
Road Pilot

Wolf's Avatar

Join Date: Mar 2013
Location: Dallas
Posts: 1,366
Rep Power: 1

Garage
Raise the white flag

Plugged everything in properly and the gauge turned on (I was ecstatic) . It looked awesome with red and blue LEDs on the start up! RPMs didn't work but all I wanted was speed ..... I get going around the block slowly because I'm in my neighborhood ..... 199 kph and climbing...... I am done trying to get this to work.
Wolf is offline
post #16 of 23 Old 03-22-2014, 05:50 AM
Imaginifer

bpolunin's Avatar

Join Date: Sep 2012
Location: Duluth, GA
Posts: 434
Rep Power: 1

Thats exactly what i had going on with mine... Never could make it work so got the real thing...

2007 Yamaha VStar Classic
2005 Suzuki SV650 - traded
2003 Honda 919 - traded
2008 Aprilia Tuono 1000R - Sold
2008 Aprilia RSV1000R Track Only
2007 Honda CBR600RR - sold
2005 Honda CBR600F4i
bpolunin is offline
post #17 of 23 Old 03-22-2014, 05:52 AM Thread Starter
Road Pilot

Wolf's Avatar

Join Date: Mar 2013
Location: Dallas
Posts: 1,366
Rep Power: 1

Garage
Quote:
Originally Posted by bpolunin View Post
Thats exactly what i had going on with mine... Never could make it work so got the real thing...
That's what I'll be doing now...
Wolf is offline
post #18 of 23 Old 03-22-2014, 07:37 AM
Tesserarius

Cloroxbleach4's Avatar

Join Date: Dec 2012
Location: Tulsa, OK
Posts: 672
Rep Power: 1

Didn't someone post about a month ago on getting a killer deal on a Koso RX2N?
Cloroxbleach4 is offline
post #19 of 23 Old 03-22-2014, 08:08 AM
GLG-20

Superdog's Avatar

Join Date: Aug 2009
Location: Huntsville, AL
Posts: 1,366
Rep Power: 1

Garage
Quote:
Originally Posted by Wolf View Post
Plugged everything in properly and the gauge turned on (I was ecstatic) . It looked awesome with red and blue LEDs on the start up! RPMs didn't work but all I wanted was speed ..... I get going around the block slowly because I'm in my neighborhood ..... 199 kph and climbing...... I am done trying to get this to work.
Does it use the stock speed sensor signal? Maybe there's a setting someplace to adjust the number of pulses per revolution?

'96 DR650, '01 SV650, '10 Aprilia Tuono 1000R
Superdog is offline
post #20 of 23 Old 03-22-2014, 12:02 PM
Left of Centre

K1w1Boy's Avatar

Join Date: May 2011
Location: Auckland, NZ
Posts: 3,732
Rep Power: 1

If you have given up on this unit completely, rather than jumping all the way to a Koso, have you considered an Acewell unit?

I don't "speak" electronics at all, but a few years ago had complete success installing one on a Gas-gas enduro bike that gave me full functions - revs, speedo, odo, and water temp.

You might find a unit that gives you the functions you want - I see Youtube has at least one Honda installation:

K1w1Boy is offline
post #21 of 23 Old 03-22-2014, 01:42 PM
Aquilifer

rpcraft's Avatar

Join Date: May 2012
Location: Dallas
Posts: 1,128
Rep Power: 1

I'd use a trailtech Vapor before I used an Acewell on a bike like the Hornet. The Acewell, in my opinion would look fine on a nostalgia bike, or a cruiser of some type where you don't want a huge dash or tach.. It should wouldn't look at home on a Hornet is all... That being said I'd be inclined to us a KOSO DB-02R before I moved on to the Vapor gauge though. Nothing wrong with the vapor at all. I had one on my last Hawk, have one for my current Hawk, but am debating on whether to use it or look into the DB-02R or the RX-1N...

Rob C

88 Blue Hawk (NT650) Project Pics - http://tinyurl.com/clw8h3q
2000 DL650 - Being ridden but make me an offer if interested...
2002 DL1000 V-Strom
rpcraft is offline
post #22 of 23 Old 03-22-2014, 10:14 PM
Centurion

Join Date: Apr 2013
Location: New Zealand
Posts: 1,310
Rep Power: 1

Oh, I like that Acewell 3913.

NZspokes is offline
post #23 of 23 Old 03-22-2014, 10:30 PM
Aquilifer

rpcraft's Avatar

Join Date: May 2012
Location: Dallas
Posts: 1,128
Rep Power: 1

ah see for some reason the video didn't show up for me earlier. I'm used to the old Acewell analog units, lol.
